Specification:
Product Model: MG995
Color: Black

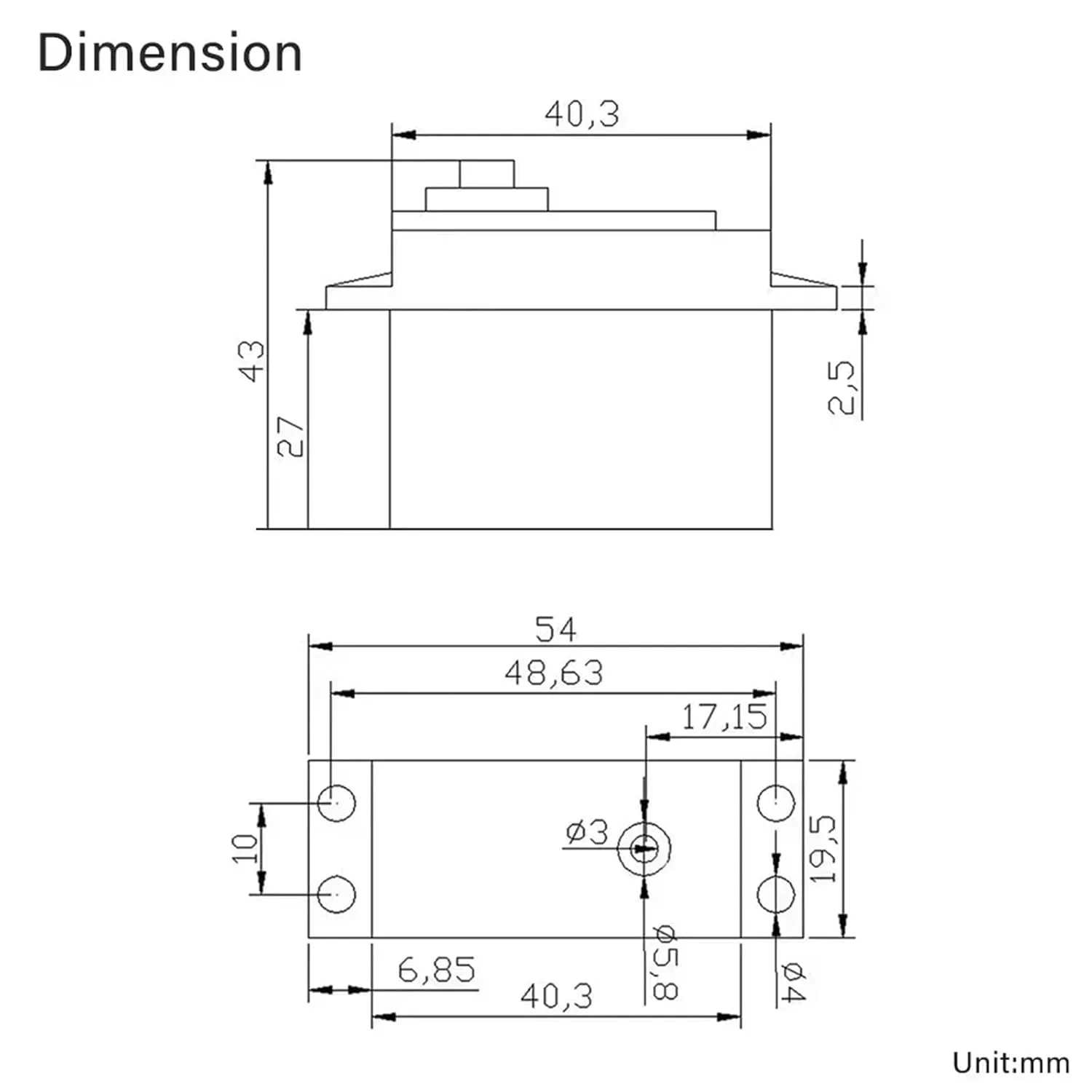

Dimension: 40mm x 19mm x 43mm
Rotation Angle: 0-180°/360°(Continuous Rotation)
Operating Speed: 0.20sec/60 degrees (4.8V no load)
Operating Speed: 0.17sec/60 degrees (6.0V no load)
Stall Torque: 9kg/cm (4.8V)
Stall Torque: 11kg/cm (6V)
Operation Voltage: 4.8 - 7.2Volts
Operating Temperature: 0 - 55

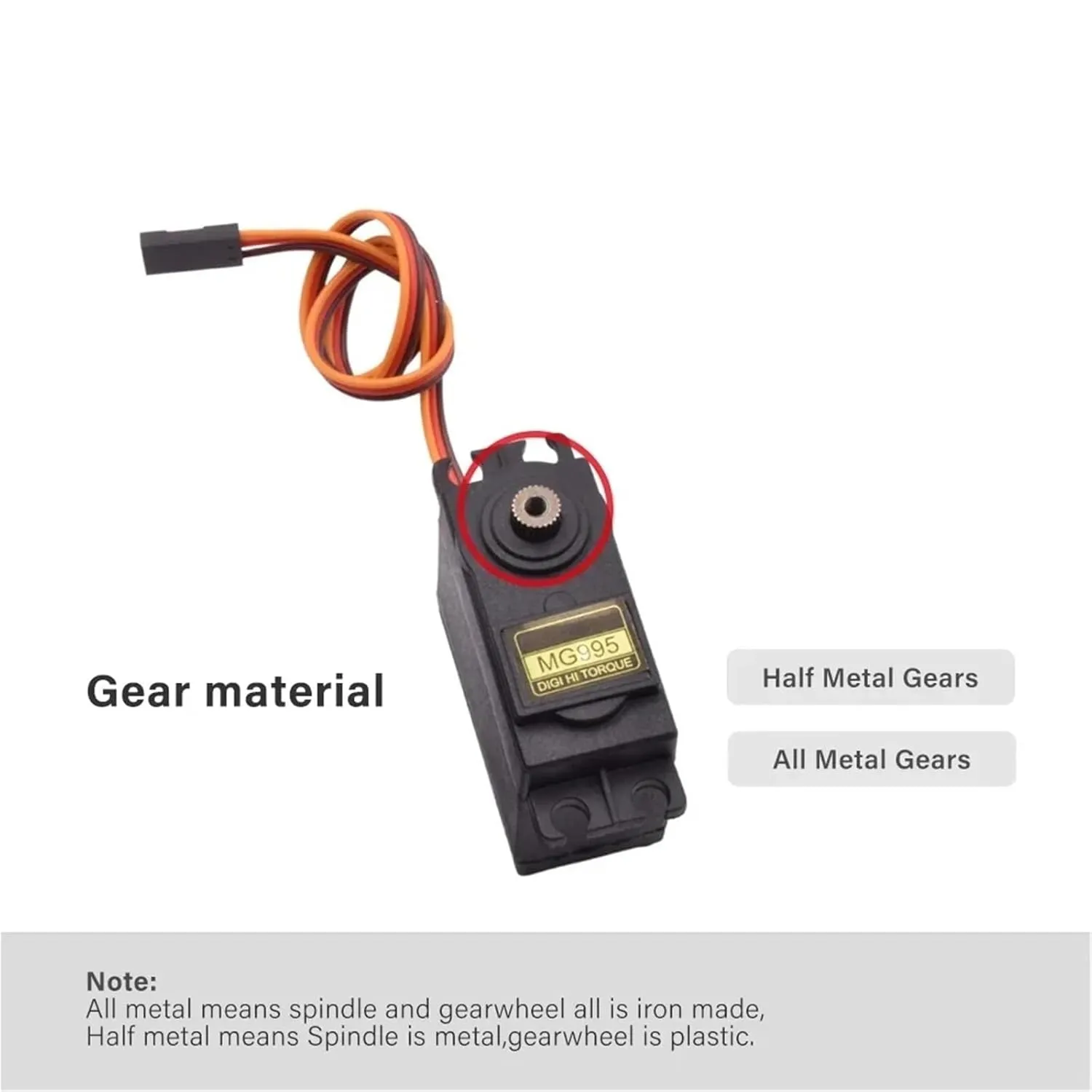

Gear Material: Half Metal/All Metal
Dead Band Width: 5msec
Operating Mode: Analog
Plug Type: JR, FUTABA General

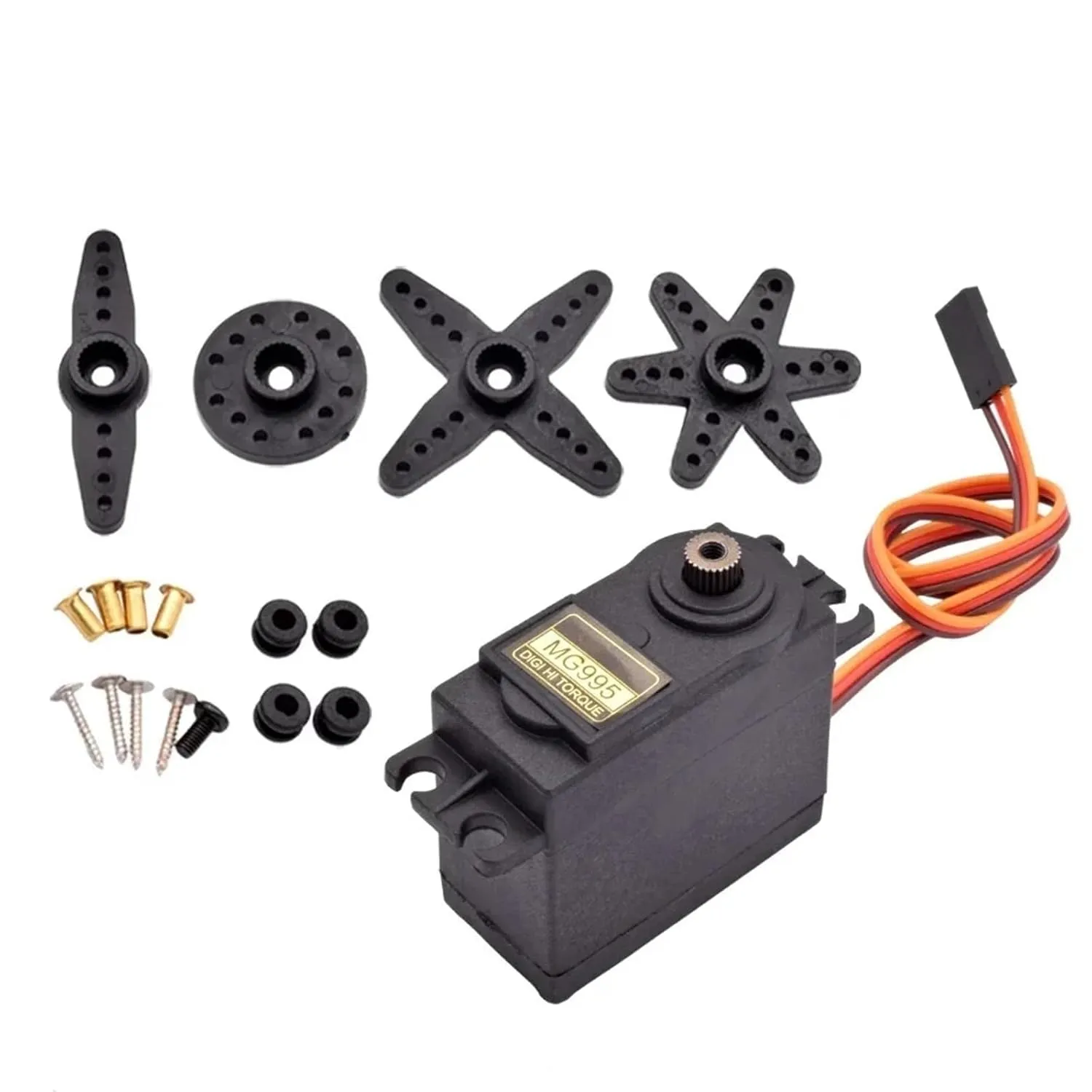

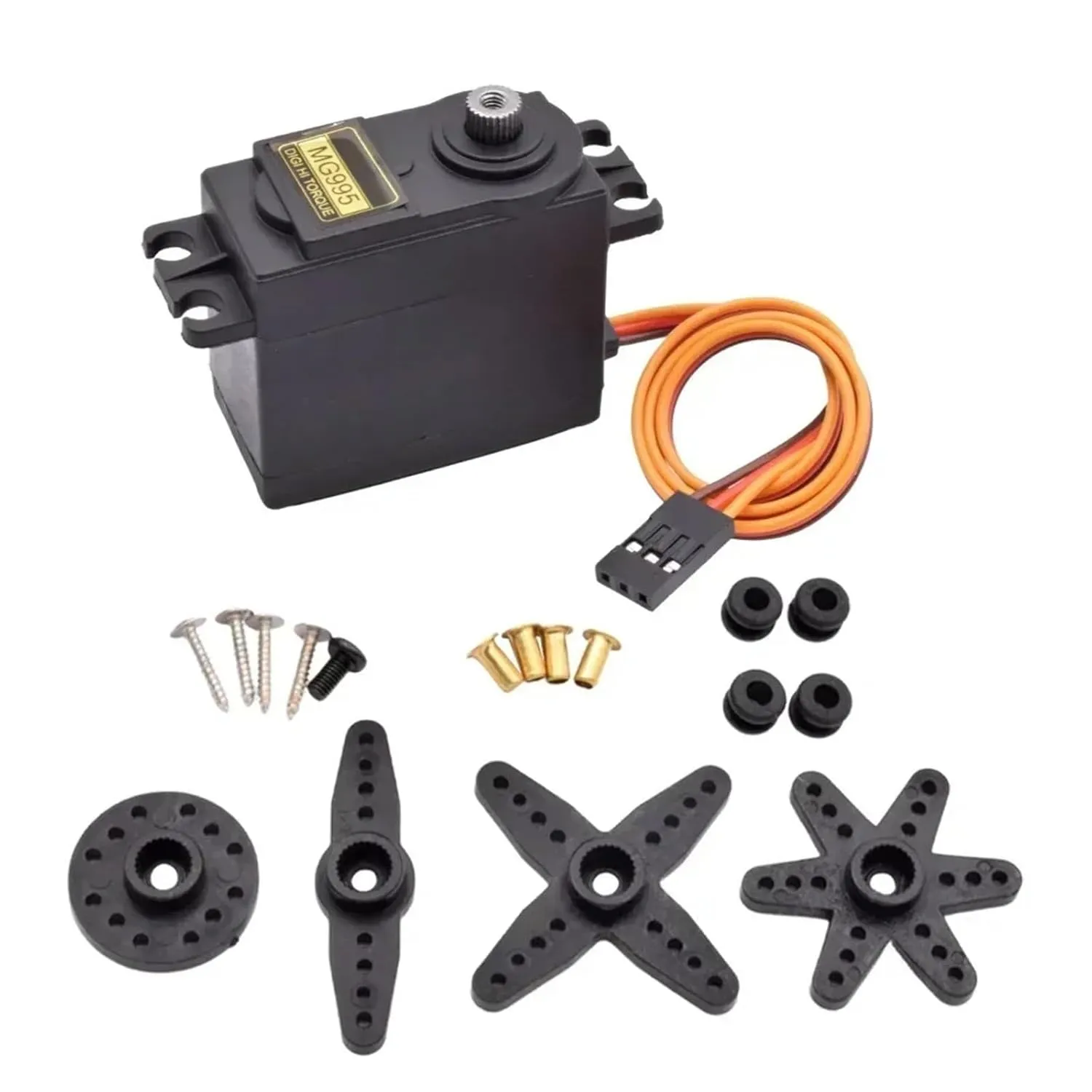

Accessories: Multi-arm, Fixing screws(AS the picture shows)

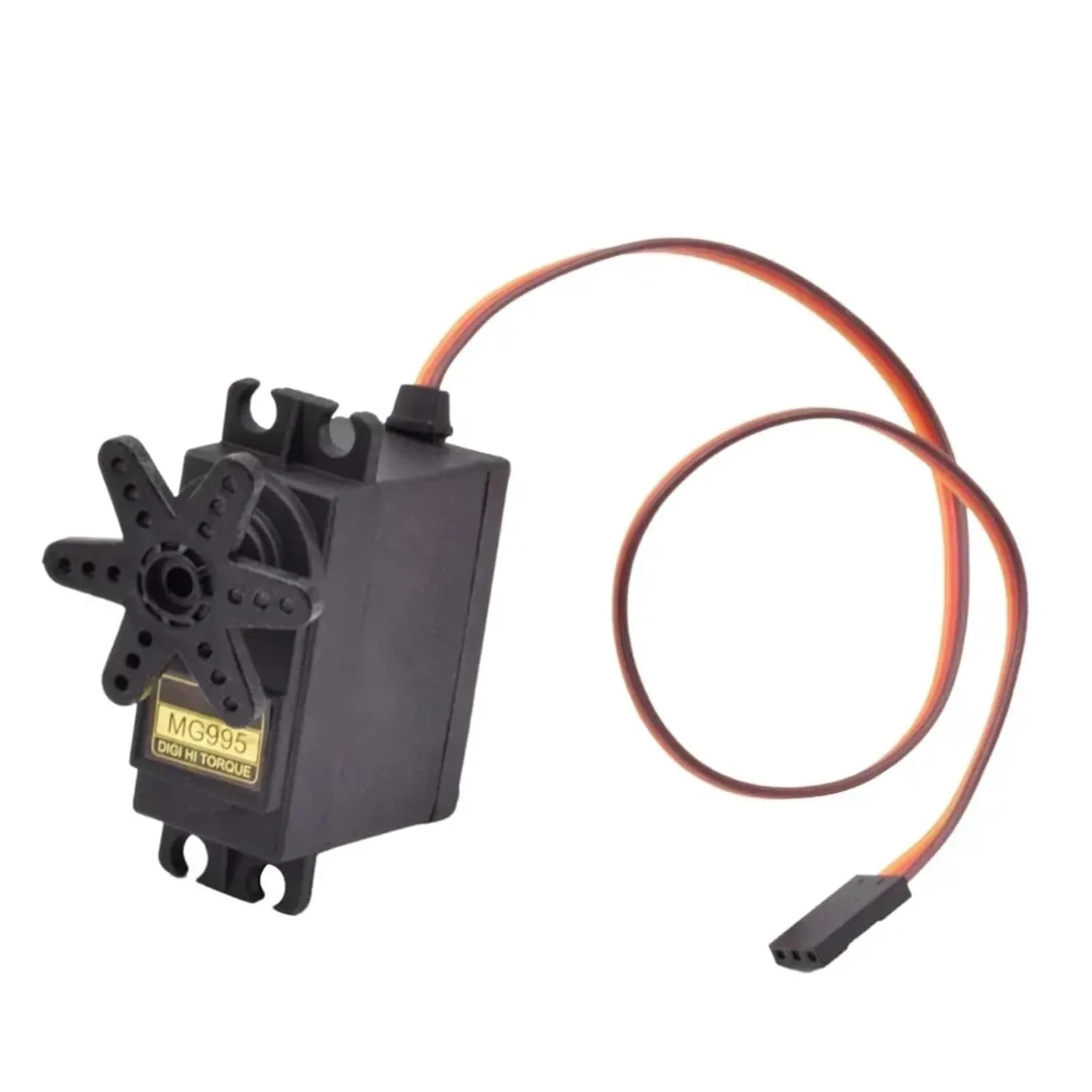

Connector Wire: 300mm(Brown: Negative; Red: Positive; Orange: Pulse Input)
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees;
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.

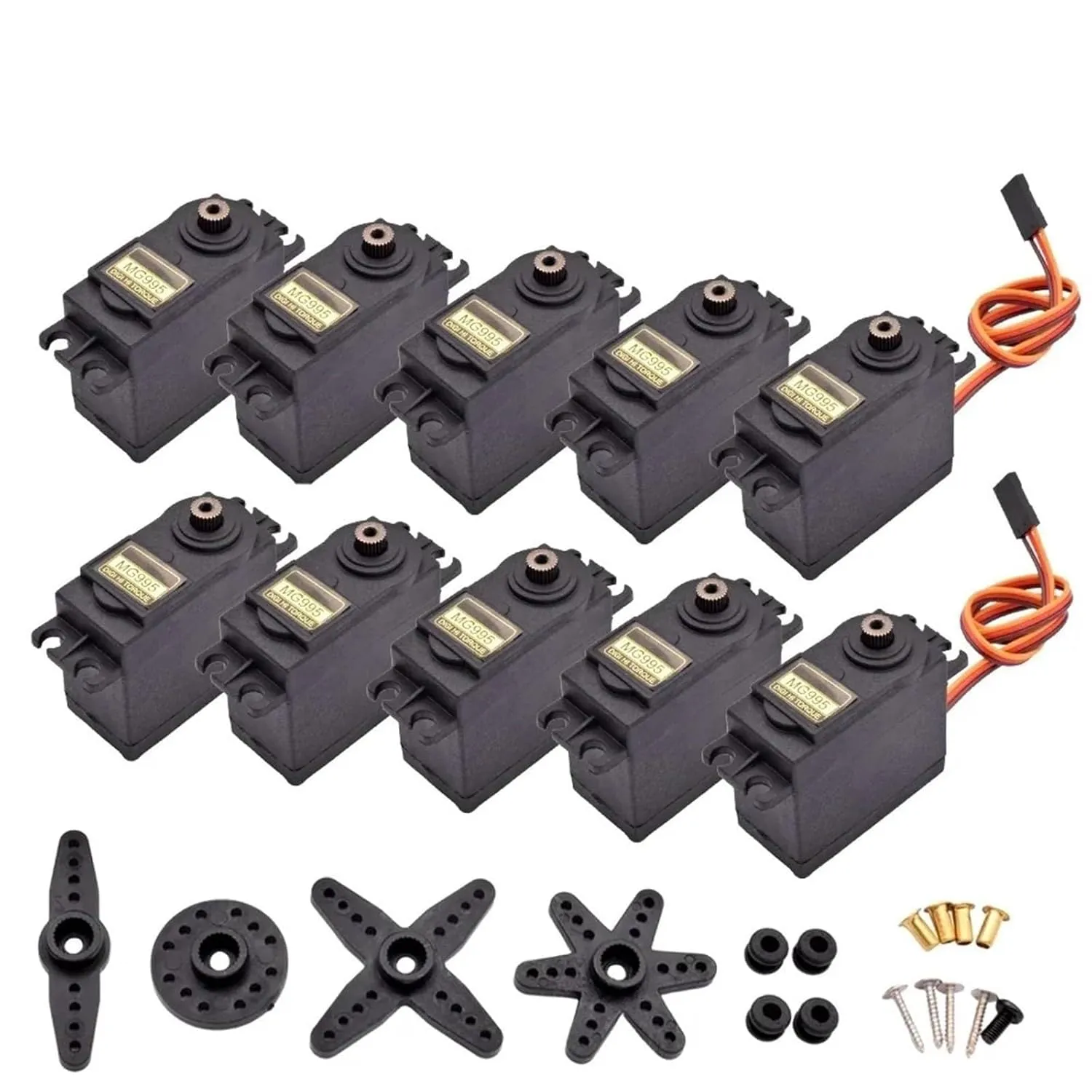

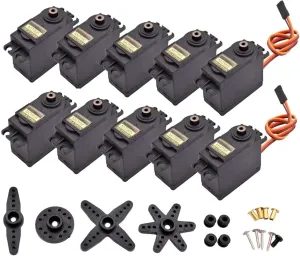

Packing: 2 x MG995 Servo or 4 x MG995 Servo for option(Including Accessories)

• Package Dimensions ‏ : ‎ 1.18 x 0.79 x 0.39 inches; 1.32 Pounds
• Department ‏ : ‎ Unisex Adult
• Date First Available ‏ : ‎ January 6, 2025
• Manufacturer ‏ : ‎ NIBYQ
• Country of Origin ‏ : ‎ China
