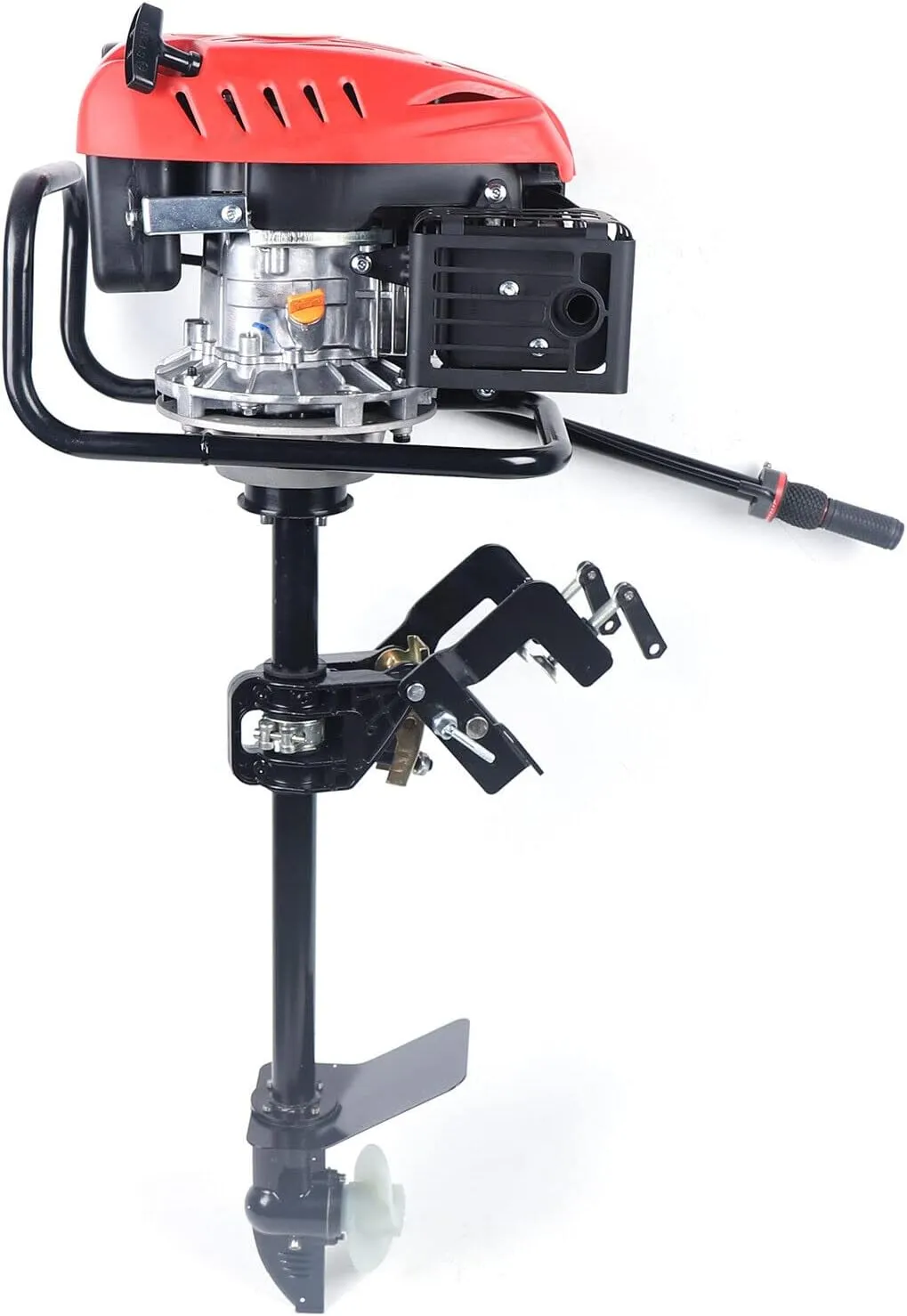

- 【Wide Applications】- VONZOER Gas outboard motors for boats is perfect for inflatable boat, sailboat, small yacht, fishing boat, kayak, canoe or used as an auxiliary trolling motor. Full body is corrosion-resistant, which allows the motor can be used in both saltwater and freshwater.
- 【4 Stroke 6HP Outboard Motor】- Superior engine with forced air-cooled CDI system to improve the reliability of the whole motor. Quick pull start, spline transmission, strong power, low noise, fuel saving, superior performance. 170CC displacement, 3600r/min max output speed.
- 【Durable & Ergonomic Design】- Durable and compact structure, heavy duty but easy to carry, forward and neutral design. Ergonomic handle is non-slip and easy to grip. Muffler is discharged directly outside the machine, 360 rotation two-blade propeller is anti-wrapping. Easy to install and control.
- 【Main Parameters 1】- Engine Type: Horizontal Bar, 4-stroke, Overhead Valve (OHV); Exhaust Volume: 173.3 (ml); Bore x Stroke: 70x45 (mm); Theoretical Power: 3.2kw/3600r/Min; Recommended Power: 2.4kw/3000r/Min; Torque: 9.0nm/2, 500r/Min; Fuel Consumption: 395g/Kw.h; Power Output Mode: Vertical Axis Output; Spark Plug Gap: 0.7-0.8mm; Carburetor Idle Speed: 1900±100r/Min
- 【Main Parameters 2】- Transmission Mode: Spline Transmission; Start Mode: Pull Start; Recommended Fuel: 92# or Above Gasoline; Recommended Engine Oil: Sae10w_30; Recommended Gear Oil: Hypoid Gear Oil Sae90; Suspension Height: Suspension Point to Propeller 60-70-80cm; Reduction Ratio: 22:15; Dimension: 39.5x34.8x115 cm (15.6x13.7x45.3 inch); Weight: 26kg (57.3lb)
Specifications
Transmission Mode: Spline Transmission
Hard Shaft, Spiral Bevel Gear Installation Method: Fixed Support Frame Combination or Clamping Bracket Backward Way
360 Rotation Whole Propeller Configuration: Counterclockwise, Three-blade or Two-blade Anti-wrapping
Starting Mode: Pull Start
Exhaust Muffler Method: Muffler Is Discharged Directly Outside the Machine
Recommended Fuel: 92# or Above Gasoline
Recommended Engine Oil: Sae10w_30
Recommended Gear Oil: Hypoid Gear Oil Sae90
Suspension Height: Suspension Point to Propeller 60-70-80cm
Reduction Ratio: 22:15
Dimensions: 39.5x34.8x115 cm (15.6x13.7x45.3 inch)
Machine Weight: 26kg (57.3lb)
Gasoline Engine Technical Parameters
Model: RV170
Gasoline Engine Type: Horizontal Bar, 4-stroke, Overhead Valve (OHV)
Exhaust Volume: 170 (ml)
Bore x Stroke: 70x45 (mm)
Theoretical Power: 3.2kw/3600r/Min
Recommended Power: 2.4kw/3000r/Min
Torque: 9.0nm/2, 500r/Min
Fuel Consumption: 395g/Kw.h
Cooling System: Forced Air Cooling
Ignition System: Capacitor Discharge Type
Power Output Mode: Vertical Axis Output
Spark Plug Gap: 0.7-0.8mm
Carburetor Idle Speed: 1900±100r/Min
Valve Clearance (Cold Engine) Intake: 0.15±0.02mm
Exhaust: 0.20±0.02mm
Package Includes
1x Outboard Engine
1x Throttle Main Line
1x Tools
