Specification:

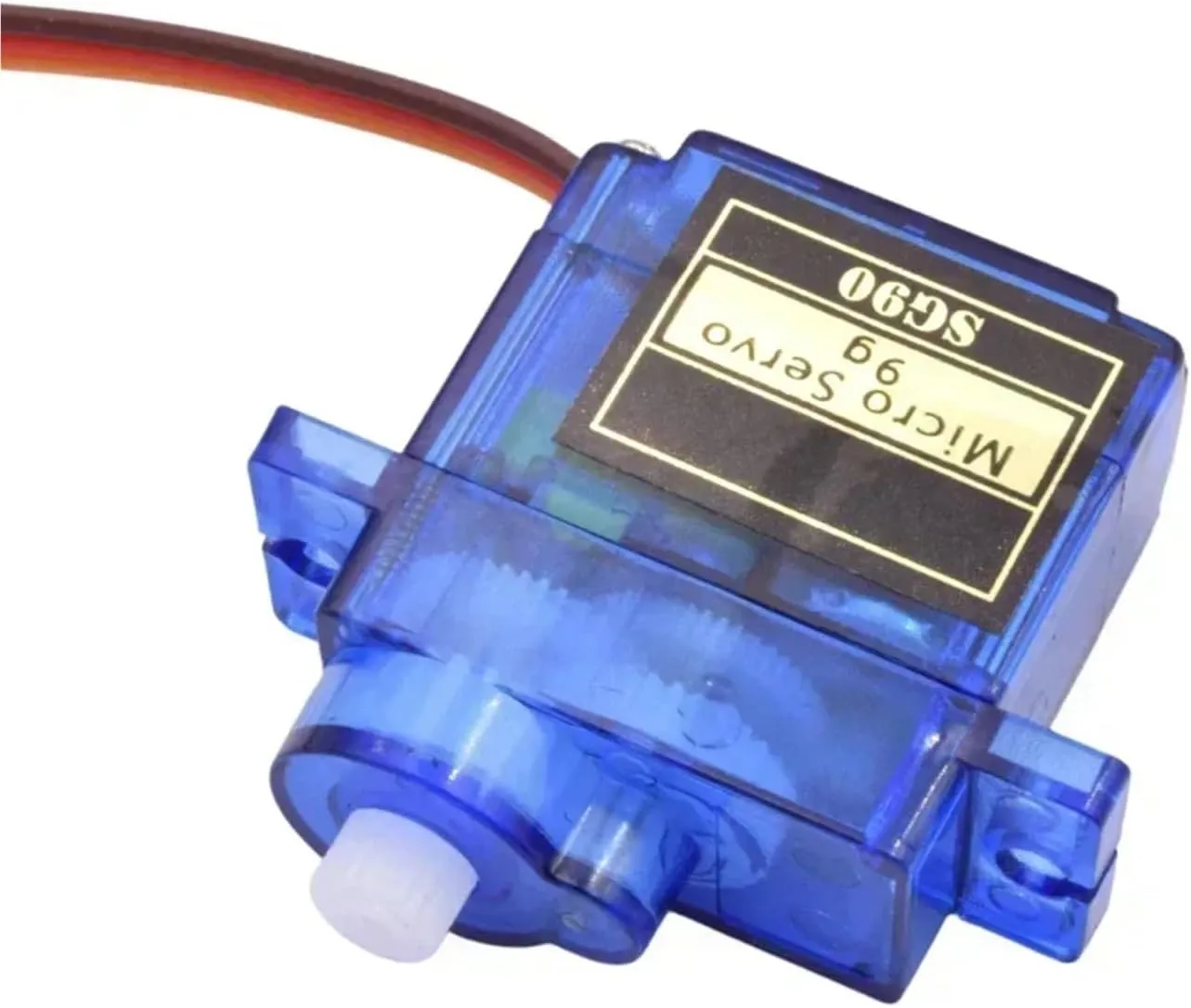

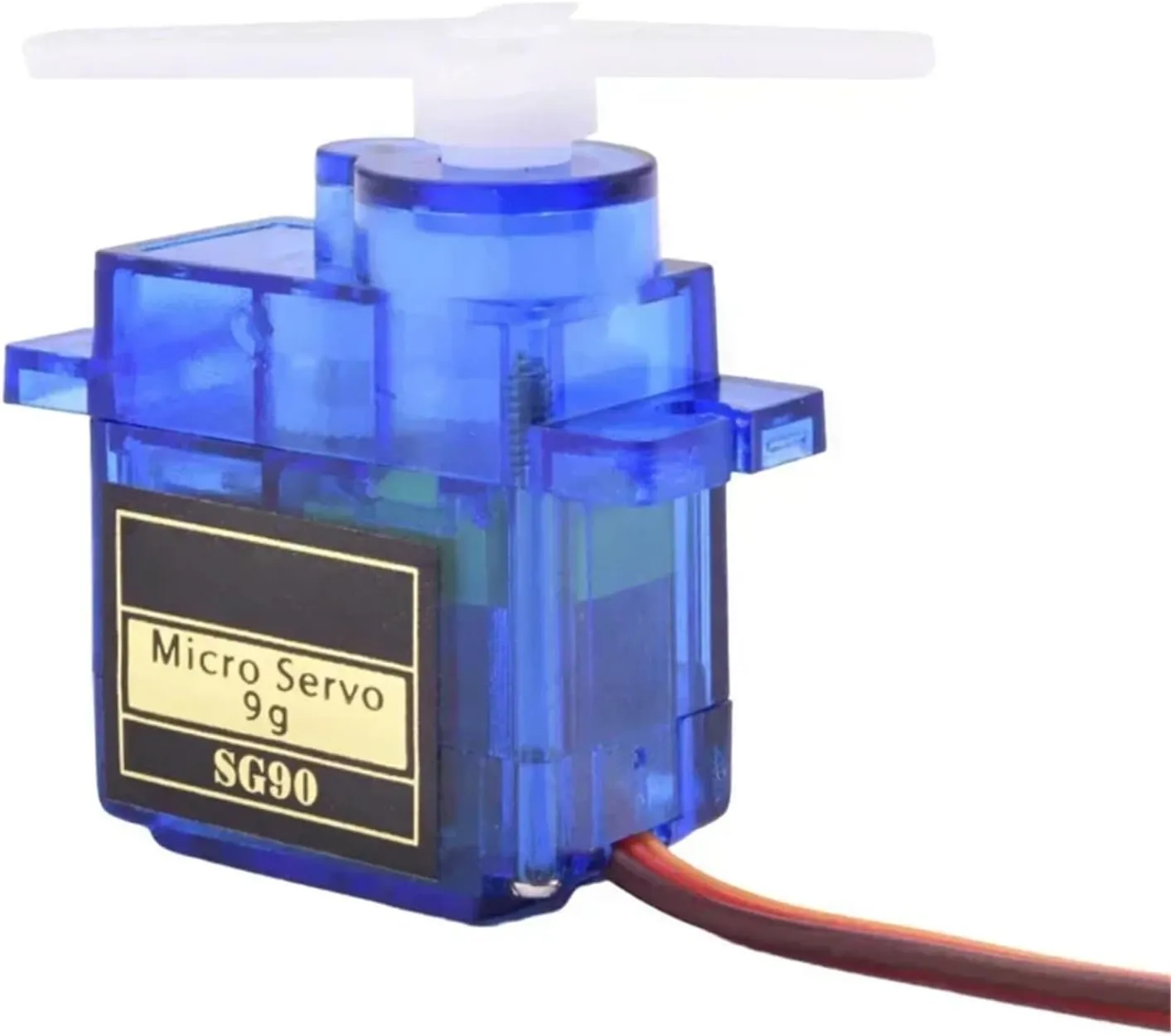

Product model: SG90
Color: Blue

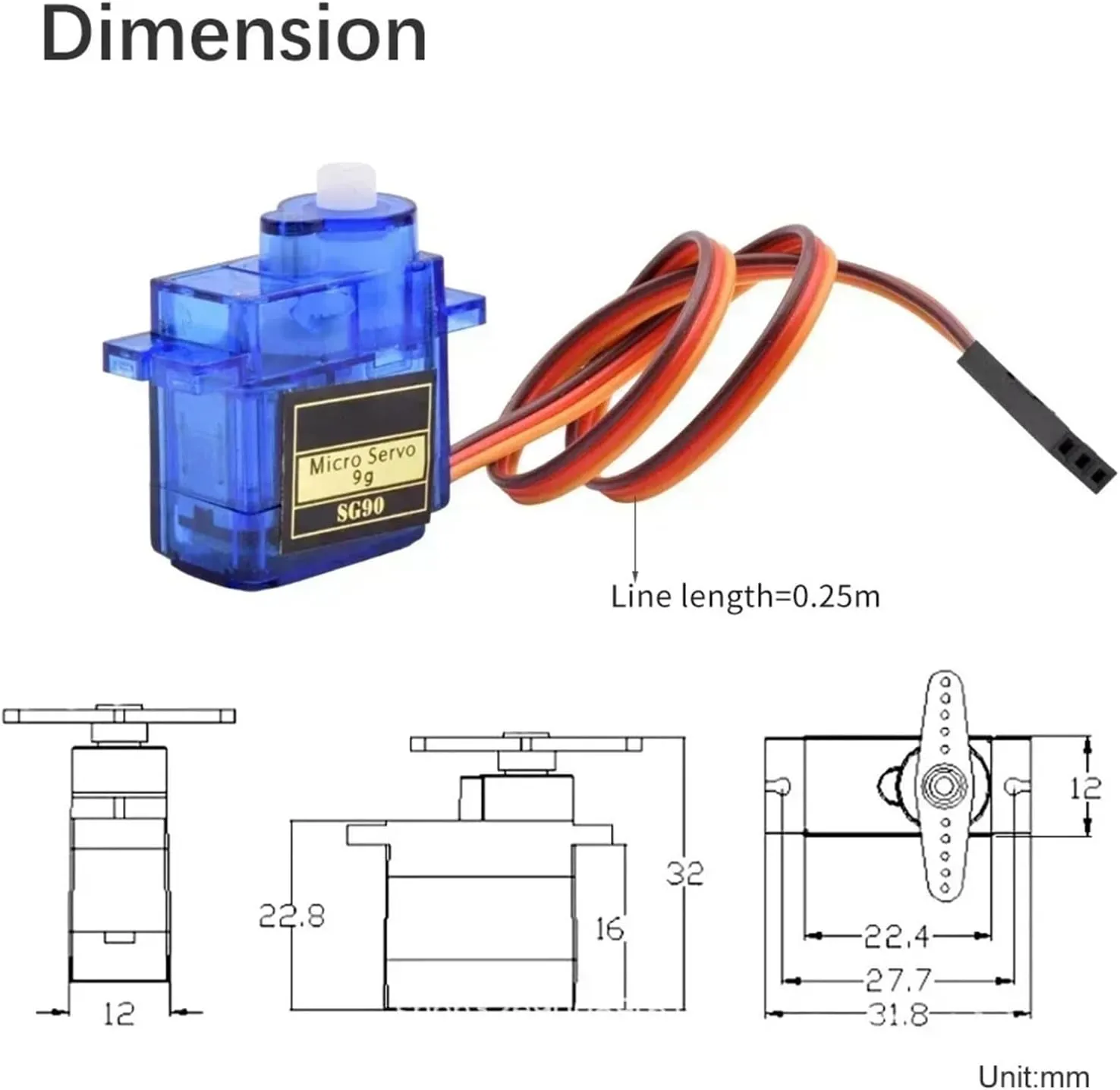

Dimensions: 22.8 x 22.4 x 12mm
Rotation Angle: 0-180°/360°( Continuous rotation)
Operating Speed: 0.1 second/ 60 degree(4.8V).
Gear Medium: Nylon
Operating Mode: Analog
Control Signal: PWM
Stall Torque: 1.5kg/cm
Temperature Range: 0 - 55
Dead Band Width: 10usec.
Operating Voltage: 4.8V
Connector Wire Length: 250mm(Brown: Negative; Red: Positive; Orange: Pulse Input)

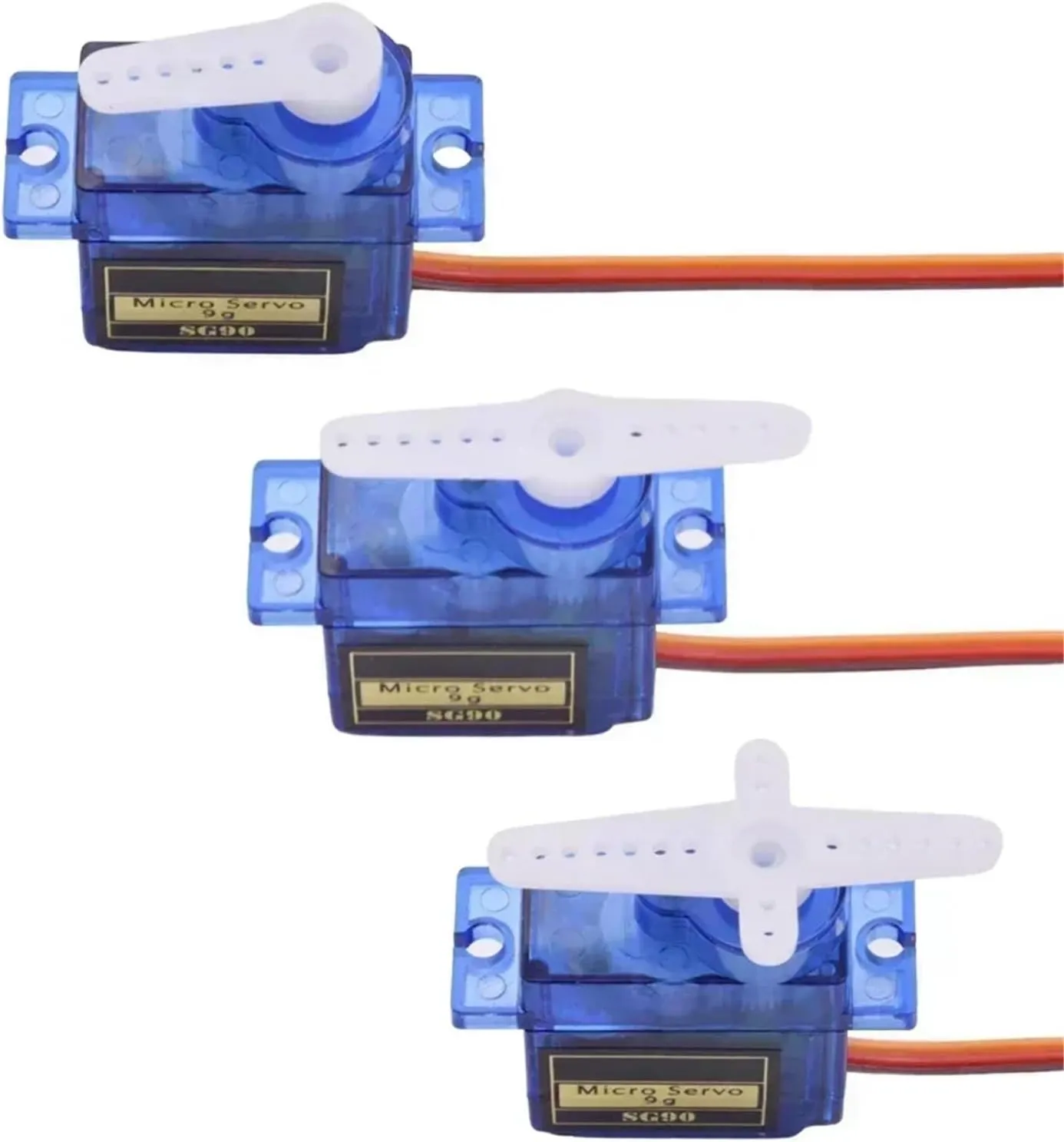

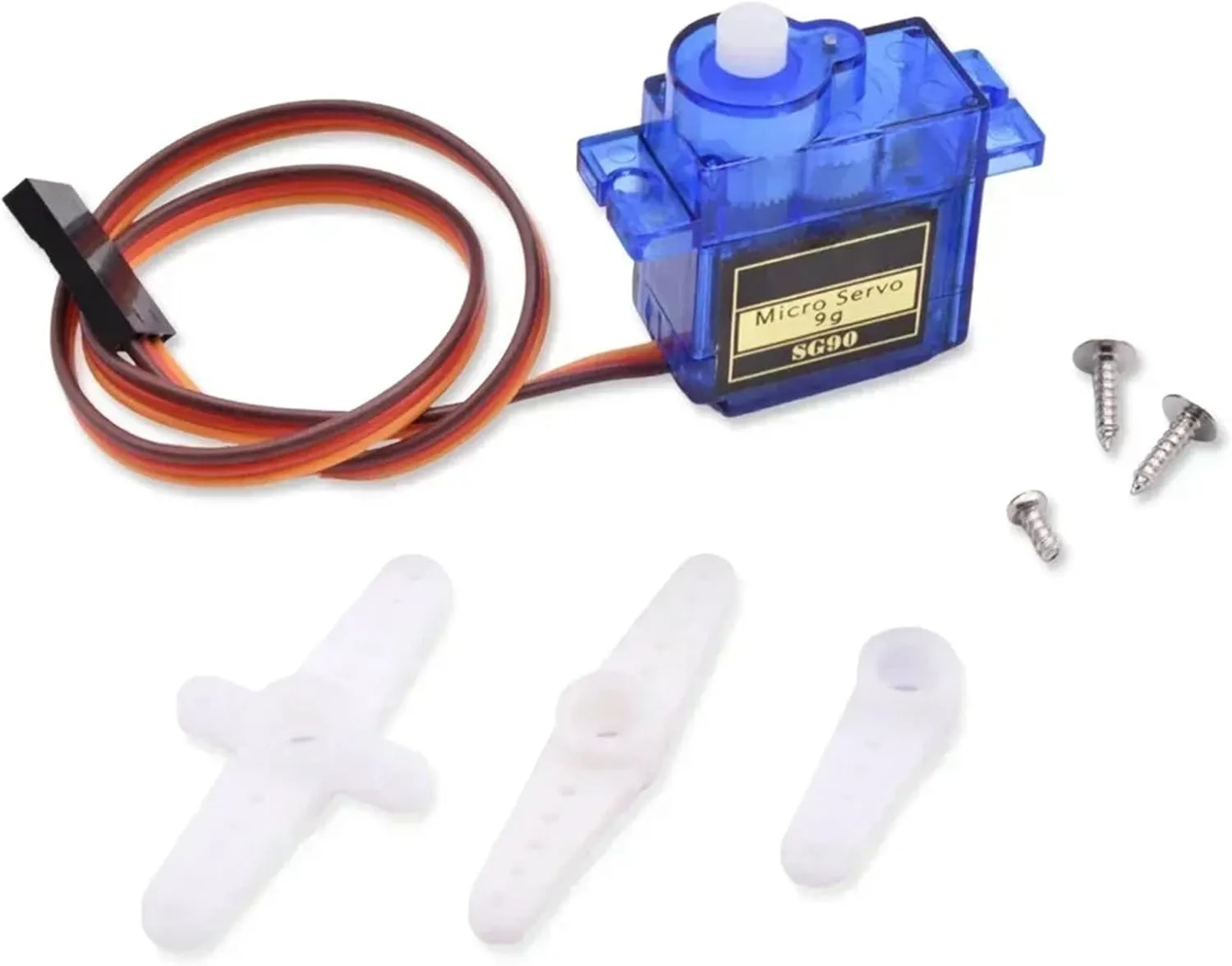

Accessories: Multi-arm, Fixing screws
Application: Mini Car / Mini Ship / Helicopter & Airplane
Steering Gear Control
The control of the steering gear generally requires a time base pulse of about 20ms and the high level part of the pulse is generally the angle control pulse part in the range of 05ms25ms.
1. Servo 0-180 Degree
The corresponding control relationship is as follows:
0.5ms---------------0 degrees;
1.0ms--------------45 degrees;
1.5ms--------------90 degrees
2.0ms--------------135 degrees;
2.5ms--------------180 degrees
For 180 degree servo, please use a professional PWM Servo Controller to control the angle
2. Servo 360 Degree
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.

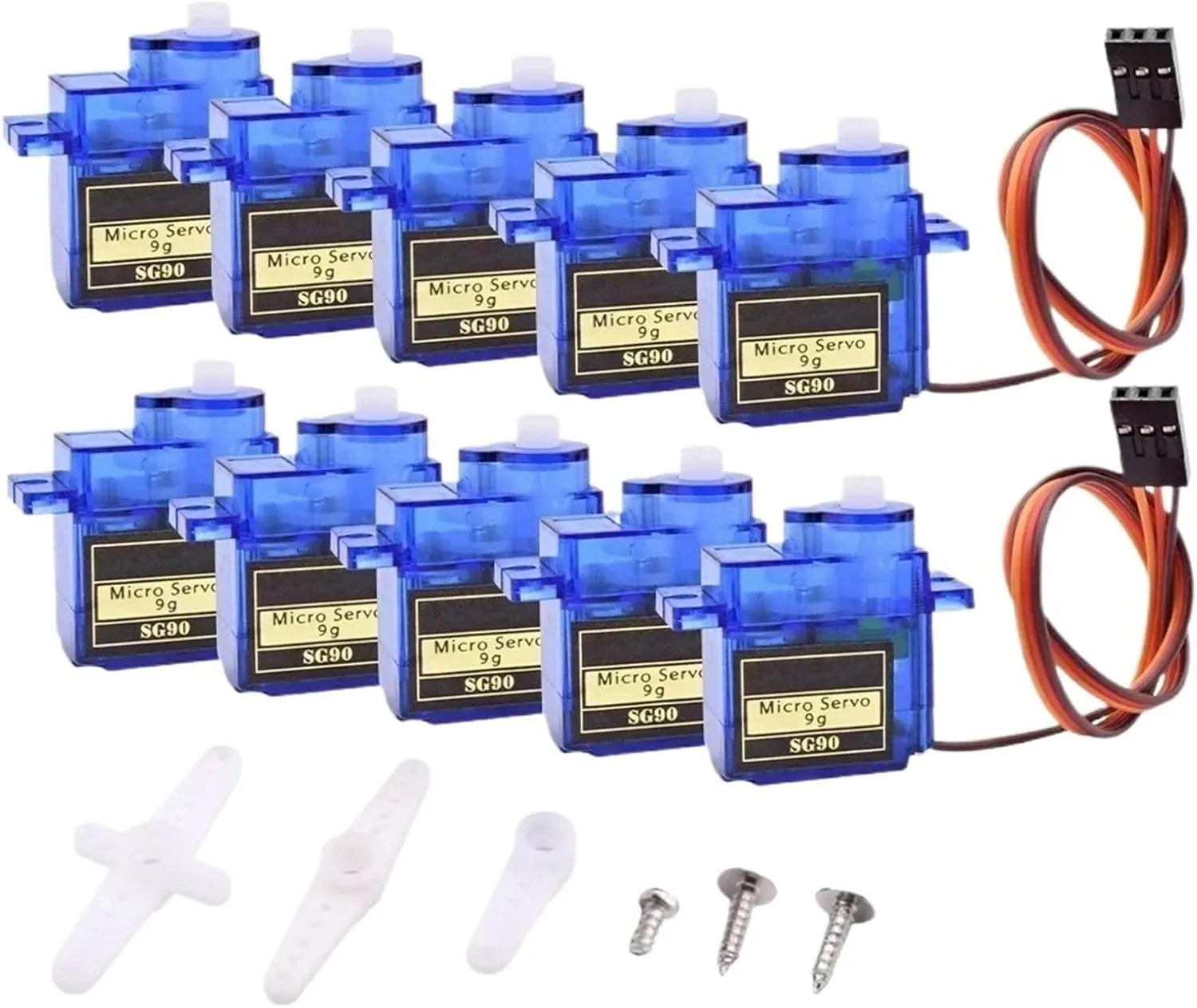

Packing: 5 x SG90 Servo Motor (with Accessories)
Angle: 0-180°/360°(Continuous Rotation)
Torque : 1.6kg/cm
Usage : Aircraft Models
Model Number : SG90
Type : Servo Motor
Protect Feature : Totally Enclosed
Rotation Angle : 0-180°/360°(Continuous ro
Gear Medium : Nylon
Operating Mode : Analog
Packing : 5pcs/lot
