- ALL METAL GEARS FOR DURABILITY: Equipped with all-metal gears designed for exceptional durability, wear resistances, and quiet action, ensuring a long service life.
- PROFESSIONAL DESIGN WITH HIGH PERFORMANCE: The motor boasts a compact size while delivering large torsion, operating ultra-quietly and stably, making it ideal for various industrial uses.
- PURE COPPER COIL FOR IMPROVED PERFORMANCE: Features a pure copper coil that enhances deceleration resistances and conductivity, boosting motor and efficiency.
- OVERLOAD CURRENT PROTECTION: Integrated overload current protection ensures safety; when the current reaches 3A, the motor automatically shuts off to prevent overheating and damage.
- WIDE INDUSTRIAL APPLICATIONS: Suitable for a variety of industries, including micro machinery, CNC machine tools, high-accuracy measuring instruments, electronic manufacturing equipment, financial machinery, and more.
Description:
This motor is designed for industrial efficiency and reliability, featuring all-metal gears for superior durability and quiet action. Its small size and large allow for stable and ultra-quiet performance, making it suitable for a wide range of applications. The motor uses a pure copper coil for improved conductivity and deceleration resistances, resulting in increased and better performance. It also comes with an overload current protection feature to safeguard the motor against overheating.
Item Type: DCReduction Motor
Model: XD-37GB520
Material: Copper
Output Shaft Size: Approx. 6 x 15mm / 0.2 x 0.6in
Insulation resistances: After the rated action of the motor under normal temperature and humidity, when measuring the insulation resistances between the coil and the motor shell with a DC500V resistances meter, it does not exceed 20MΩ
Insulation Withstand Voltage: After the rated action of the motor under normal temperature and humidity, 50Hz or 60Hz is applied between the coil shells for one minute, and the abnormality is 1500V.
Temperature Rise: It is normal to install a gear box or equivalent heat sink and conduct rated action under normal temperature and humidity by using the resistances to measure the temperature rise of the coil below 70℃.
Insulation Class: Class B(130℃)
Operating Environment Temperature: Motor: -10~ 40℃ (no icing)
Use Environment Humidity: 85% or less (no condensation)
CW/CCW: Yes
Speed Adjusted: Yes
Model Voltage (DC/V) No-load speed (rpm/min) No-load current (A) Load Speed)rpm/min) Load torsion(kgf·cm) Load current(A) Power(W)
XD-37GB520 12V 100 0.15 93 1.17 0.6 5
150 0.15 128 0.78 0.6 5
200 0.15 175 0.58 0.6 5
300 0.15 245 0.39 0.6 5
500 0.15 435 0.23 0.6 5
600 0.15 535 0.19 0.6 5

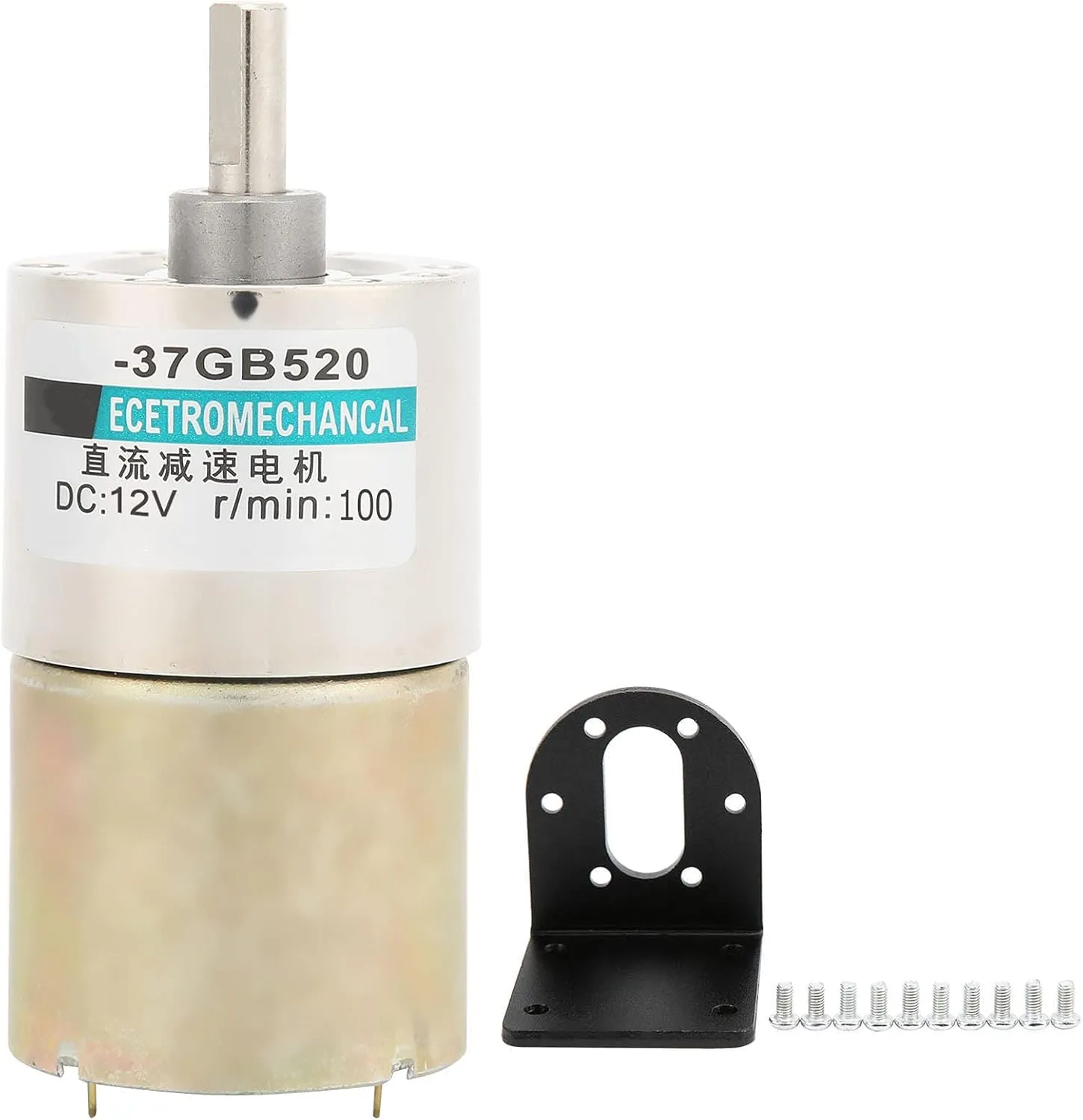

Package List：
1 x Motor
1 x Bracket
10 x Screw
