- 【Scope of Application】This LCG transmission is suitable for 1/10 rc car SCX10 TRX4 RC4WD Capra axle DIY chassis

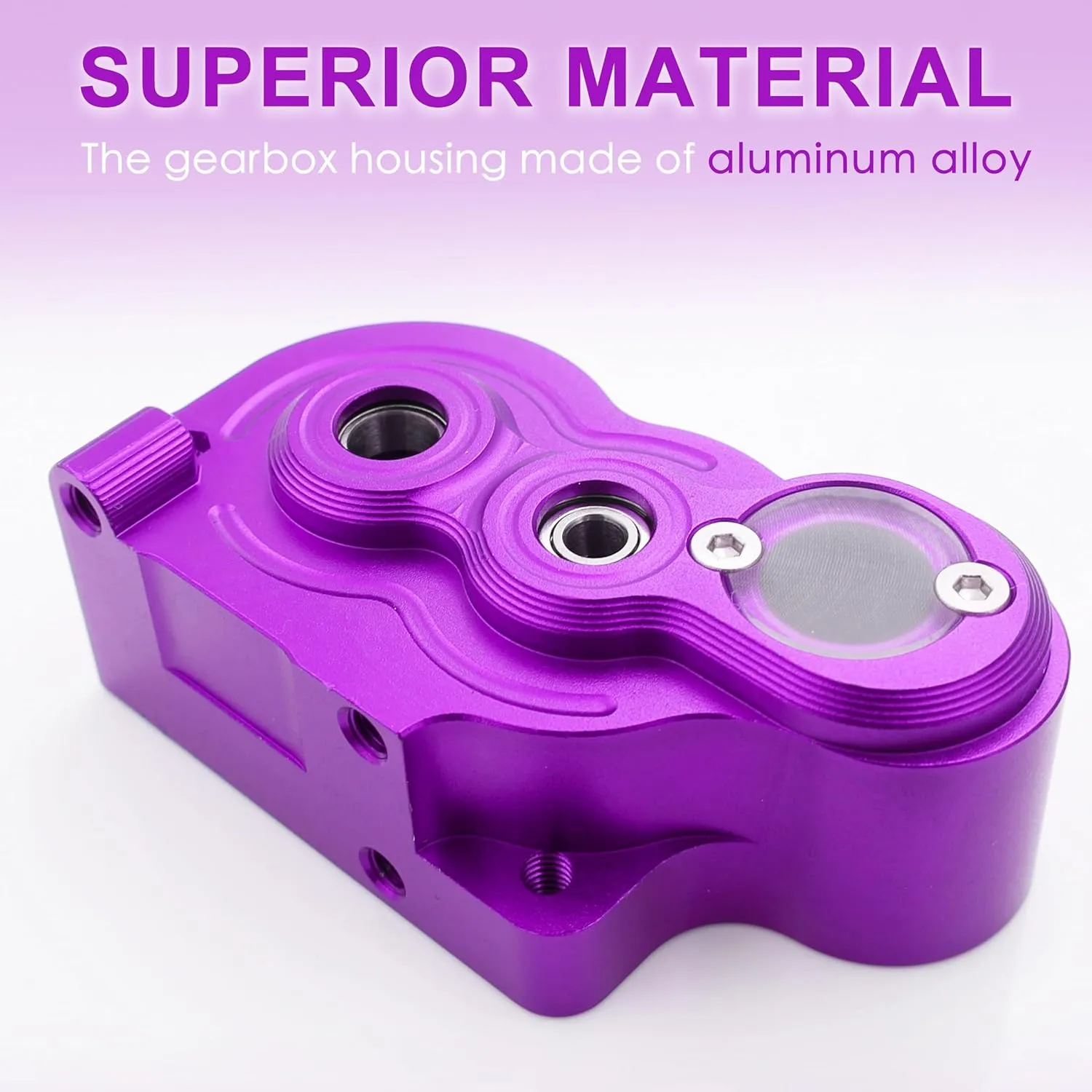

- 【Superior Material】The gearbox housing made of aluminum alloy, which is more strong and sturdy than acrylic and plastic materials. All gears are made of steel, high precision, high strength and wear resistance
- 【Long-lasting Performance】CNC processing, purple red black anodizing, compact design, small size, minimal space occupation within the frame, avoiding interference as much as possible

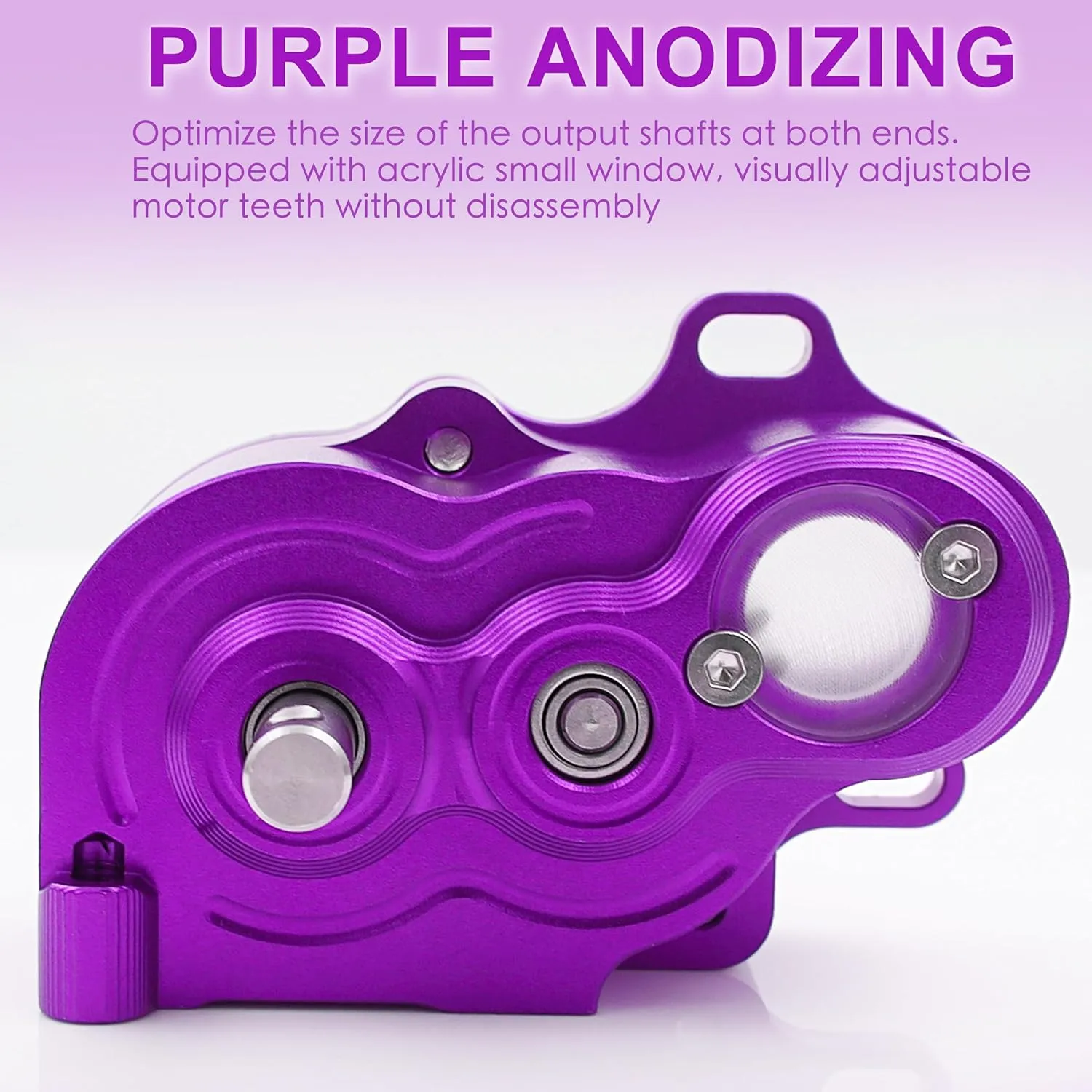

- 【Upgrade Design】Optimize the size of the output shafts at both ends. Equipped with acrylic small window, visually adjustable motor teeth without disassembly
- 【Please Note】Additional lubricating grease can be added before use to reduce the noise of metal gear meshing
Uniform Speed Gear Specification:
Material: aluminum alloy (shell), stainless steel (gear)
Motor Teeth: 9T-32P
Gear Ratio: 9:1
Compatible Motor: 540, 550/outer rotor (3.17mm shaft)
Output Shaft: 5mm
Compatible Base Plate: SCX10 model (three hole)
Weight: 54.2g (excluding screws)
High Speed Gear and Slow Speed Gear Specification:
Material: titanium alloy (gear) , stainless steel (shaft/Bolt)
Motor Teeth: 8T-32P
Gear Ratio: 1: 5.9 (fast); 1: 10.5 (slow)
Compatible Motor: 540, 550/outer rotor (3.17mm shaft)
Output Shaft: 5mm
Weight: 54.2g (excluding screws)
Gear weight: 1:5.9(20.3 g) ; 1:10.5 g (32P)
What's Included:

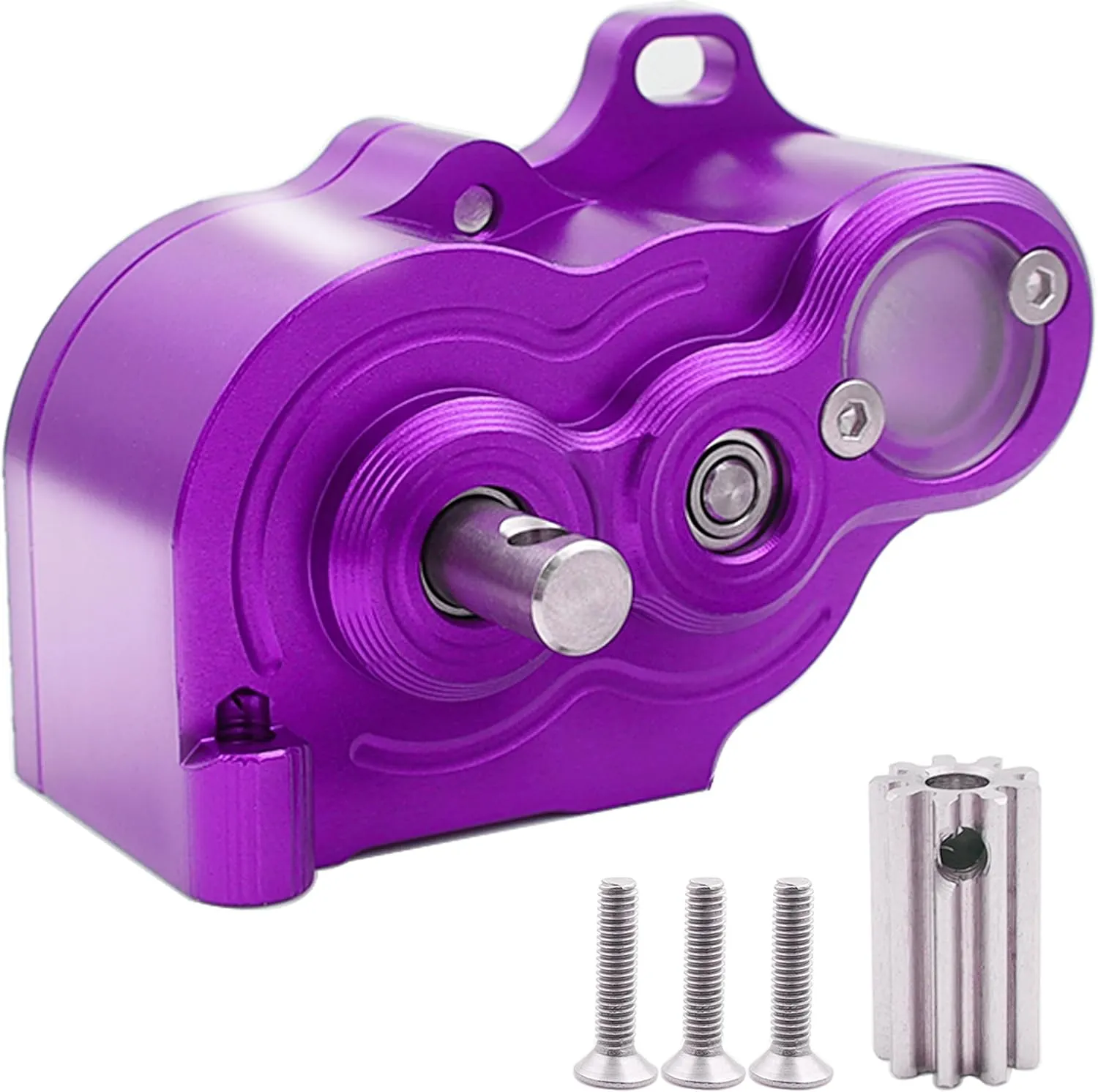

1 * LCG Gearbox
1 * Gear
