Description:

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor. Hydrostatic cab models feature the all-new Servo HST with Pedal Link.

Specifications:

Engine:

• Type: 3-cylinder, liquid-cooled, turbocharged diesel, CRDI
• Model: L3C19-T (Tier 4 compliant)
• Gross Engine HP: 52 HP
• PTO HP: 44.2 HP (Hydrostatic) / 41.6 HP (Gear)
• Rated Speed: 2,600 RPM
• Displacement: 114.7 cubic inches
• Fuel Tank Capacity:
• 12.4 gallons (Cabin)
• 10.6 gallons (ROPS)
• Alternator: 12V, 70A

Drive Train:

• Transmission: Hydrostatic (HST)
• Speeds:

• 3 Ranges (HST)
• Brakes: Wet, multi-disc

PTO:

• Type: Independent
• Rear PTO Speed: 540 RPM

Hydraulic System:

• Control System: Position/Draft
• Implement Pump Flow: 8.2 GPM
• Steering Pump Flow:
• 4.1 GPM (Gear)
• 5.5 GPM (Hydro)
• 6.8 GPM (Hydro Cab)
• Total Hydraulic Flow:
• 12.3 GPM (Gear)
• 13.7 GPM (Hydro)
• 15.0 GPM (Hydro Cab)

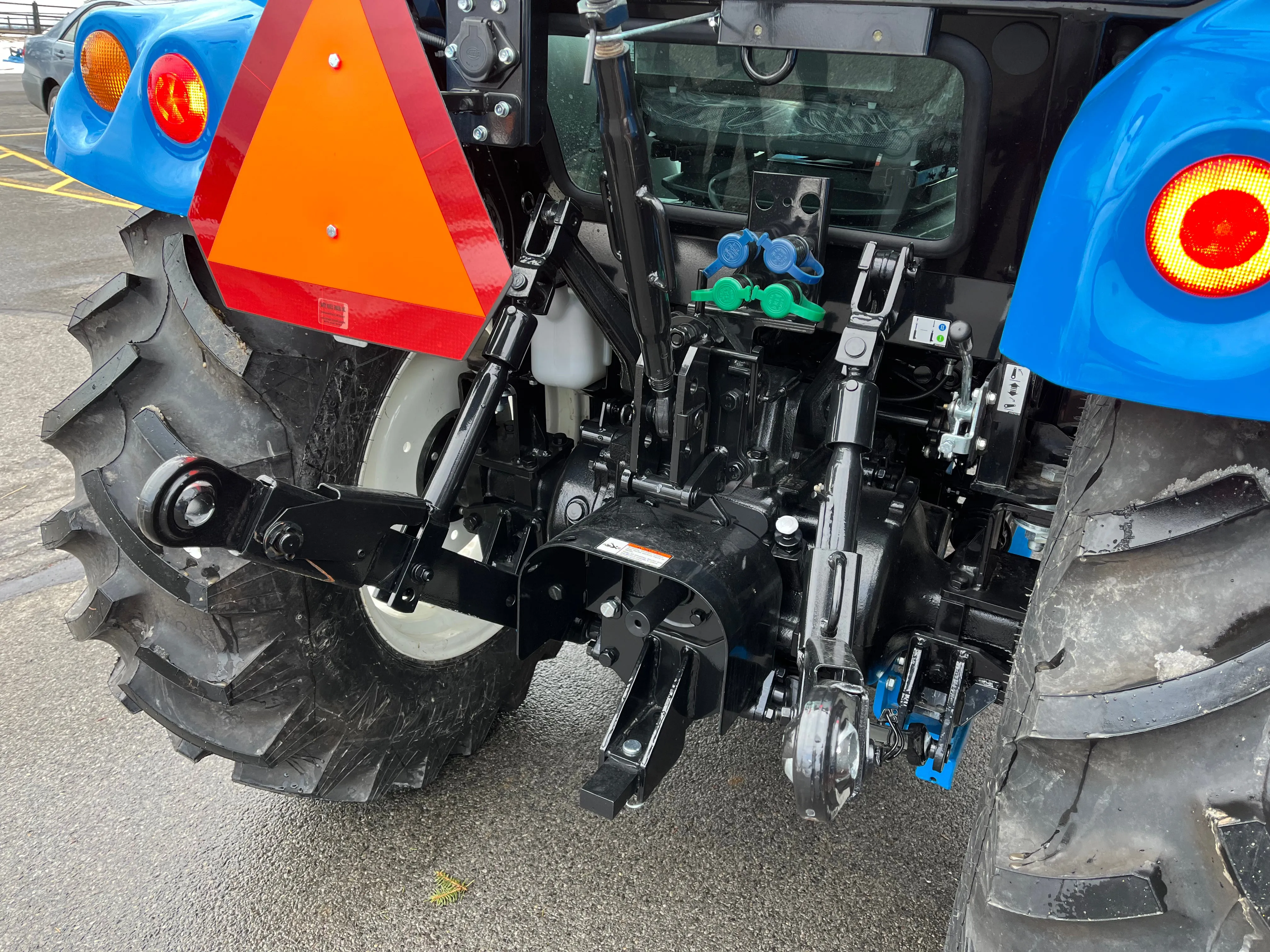

• 3-Point Hitch Category: CAT 1
• Hitch Lift Capacity: 2,755 lbs
• Remote Valves: 2 pairs (1 detent, 1 standard)

Dimensions:

• Overall Length (Bumper to Link): 133 inches
• Wheelbase: 73.2 inches
• Overall Width with Tires: 62.5 inches
• Height to Top of ROPS:
• 95 inches (ROPS)
• 90 inches (Cab)

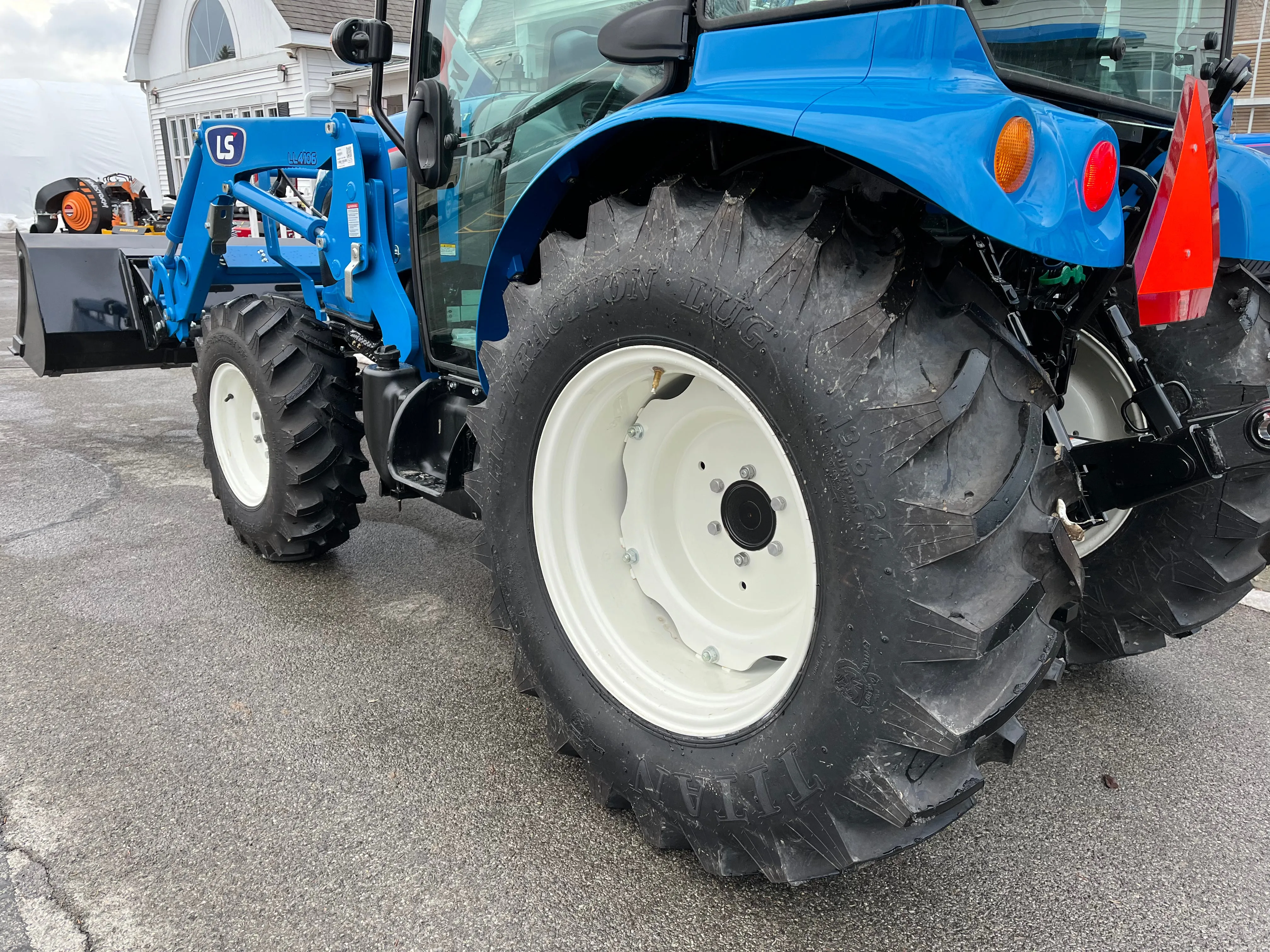

Tire Sizes:

• Agricultural Tires:
• Front: 9.5 – 16
• Rear: 13.6 – 24
• Industrial Tires:
• Front: 12 – 16.5
• Rear: 17.5L – 24
• Turf Tires:
• Front: 28 x 8.5 – 15
• Rear: 41 x 14 – 20

Weight:

• Total Weight Without Ballast:
• 3,935 lbs (ROPS)
• 4,446 lbs (Cab)
