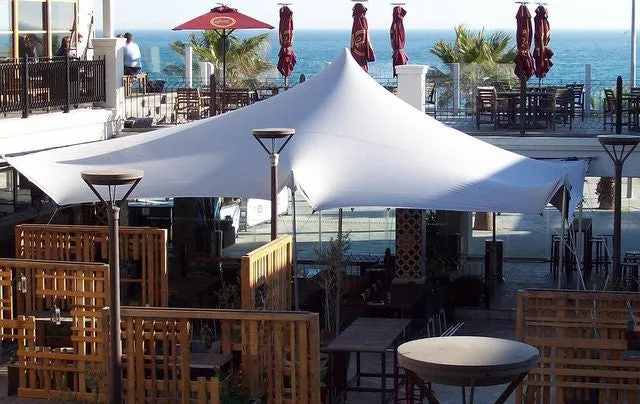

These marquees come in a variety of standard shapes, sizes and colours, or you can work with our professional designers to create nearly any structure you can imagine with colours and printed logos & branding to make it uniquely yours.
Because of the incredible stretch in our Stretchflex range, they create designs & configurations that are guaranteed to draw a crowd wherever you set it up. Add lights, lycra, stretch event architecture and inflatable structures to any of our stretch marquees and you've got a combination that will instantly take your event to the next level.
Specifications
Download Spec Sheet Here
12 MONTHS GLOBAL WATERPROOFING WARRANTY
Strong machine stitched and welded edges and seams
- Standard size tents available along with custom tents in any shape or any size
- standard size tents are up to 9m x 12m (30' x 40')
- custom tents can be made up to 10m x 15m (33' x 50') in size for a single tent
- 100% Waterproof
Stretch polyamide (nylon) knit coated with a polymeric PU waterproof coating on two sides
Strongest machine stitched and welded edges and seams
Fire rated to Australian, British and international safety standards
Impregnated (not coated) with fire retardant chemicals
- Certified to the following international standards
- AUSTRALIA and NEW ZEALAND standards AS1503.3:1999 and AS 1530.3:1992
- BRITISH standard BS6807:Crib 5
Perfect 4 way stretch & memory
100% Full recovery memory
UV stabilised by Fluorocarbon impregnation
- Colour protection anti fading
Non toxic anti-Microbial application (viral, bacterial, fungal)
Breaking load of 1 tonne on any point
2.2m Width seams
All seams are stitched and welded for extra stength and durability
Lightweight 240g/m2

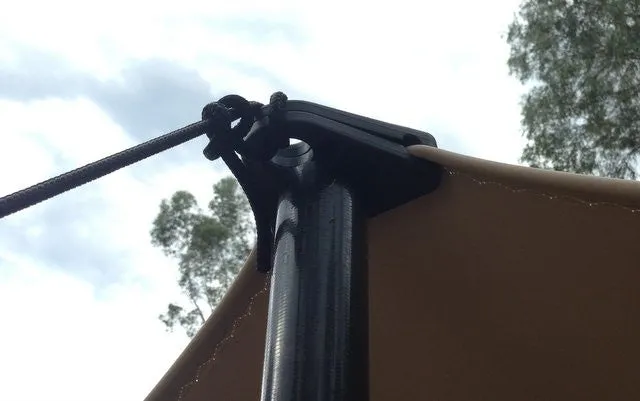

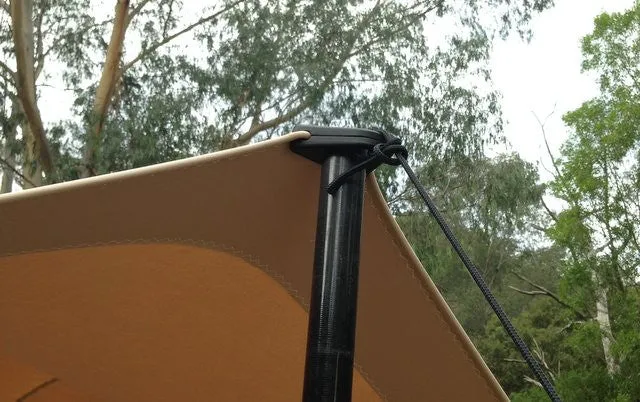

Innovative edge clamp system
Both sides waterproof coating ensures quick runoff & fast drying times
- Dirt repellent & machine washable up to 95 deg C
- Can also be cleaned on site using high pressure hoses and soft detergents
- Easily repaired without compromising the tents waterproofing
- Tents can be seamlessly repaired by heat application of patch to either side of the fabric
- All tents are supplied with simple to apply elastic clear repair tape for quick application repairs
Brandable fully printable with CMYK white dye sublimation, digital or screen printing
Wind proof up to wind force 6 (45 km/h).
Range of colours
Pole Pack Options
- Complete Pole Pack Option includes collapsible High grade 6005/T6 Aluminium Poles, Pole Stand, Snap hooks, Flying rings, PVC Industrial carry bags
- ST CR Cleat Rope Tensioning pack which includes
- Quick Tensioning Stainless steel Cleat, Rope for cleat system, Snap Hooks for cleat System
- ST AP 60cm Steel Anchor Pack
| POLE PACK | ||||||||
| Stretch Freeform Tent Size | ST 4.5m x 6m | ST 6m x 8m | ST 8m x 10m | ST 9m x 12m | ST 10m x 15m | ST 15m x 20m | ||
| Collapsible Aluminium Poles 2.5m length | 4 | 2 | 4 | 8 | 8 | 10 | ||
| Collapsible Aluminium Poles 3.3m length | 1 | 4 | 6 | 6 | 6 | 10 | ||
| Collapsible Aluminium Poles 4m length | 0 | 1 | 1 | 1 | 3 | 6 | ||
| Collapsible Aluminium Poles 5m length | 0 | 0 | 0 | 0 | 0 | 1 | ||
| Base Plate / Pole Stand | 0 | 0 | 0 | 0 | 0 | 0 | ||
| 60cm Steel Anchor (Pegs) | 6 | 10 | 16 | 22 | 30 | 45 | ||
| Snap Hooks | 6 | 8 | 10 | 12 | 15 | 20 | ||
| Cleat Rope Sets | 6 | 8 | 10 | 12 | 15 | 20 | ||
| 6mm Nylon Rope | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Industrial Carry Bags | 0 | 0 | 0 | 0 | 0 | 0 | ||
| Dimensions | 1.33x0.32x0.33 0.62x0.62x0.04 | 1.33x0.32x0.33 0.62x0.62x0.04 | 1.4x0.43x0.34 0.62x0.62x0.04 0.62x0.62x0.50 | 1.45x0.33x0.4 0.62x0.62x0.04 0.62x0.62x0.50 | 1.5x0.48x0.4(2) 0.62x0.62x0.08 | 1.5x0.48x0.4(Qty 3) 0.62x0.62x0.16 | ||
| Weight | 42kg | 49Kg | 67Kg | 75Kg | 108Kg | 198Kg | ||
| Quantity of Cartons | 2 | 2 | 3 | 3 | 3 | 4 | ||
- Note the basic pole packs are the poles only - and do not include the snap hooks, cleat rope sets, rope, carry bags, pegs and base plates
Instructions
Tent Installation
Edge Clamp Installation
Inclusions
Each tent package is supplied with the stretch tent roof, lightweight bag, along with the centre pole caps, edge pole caps, and quick tape repair kit
