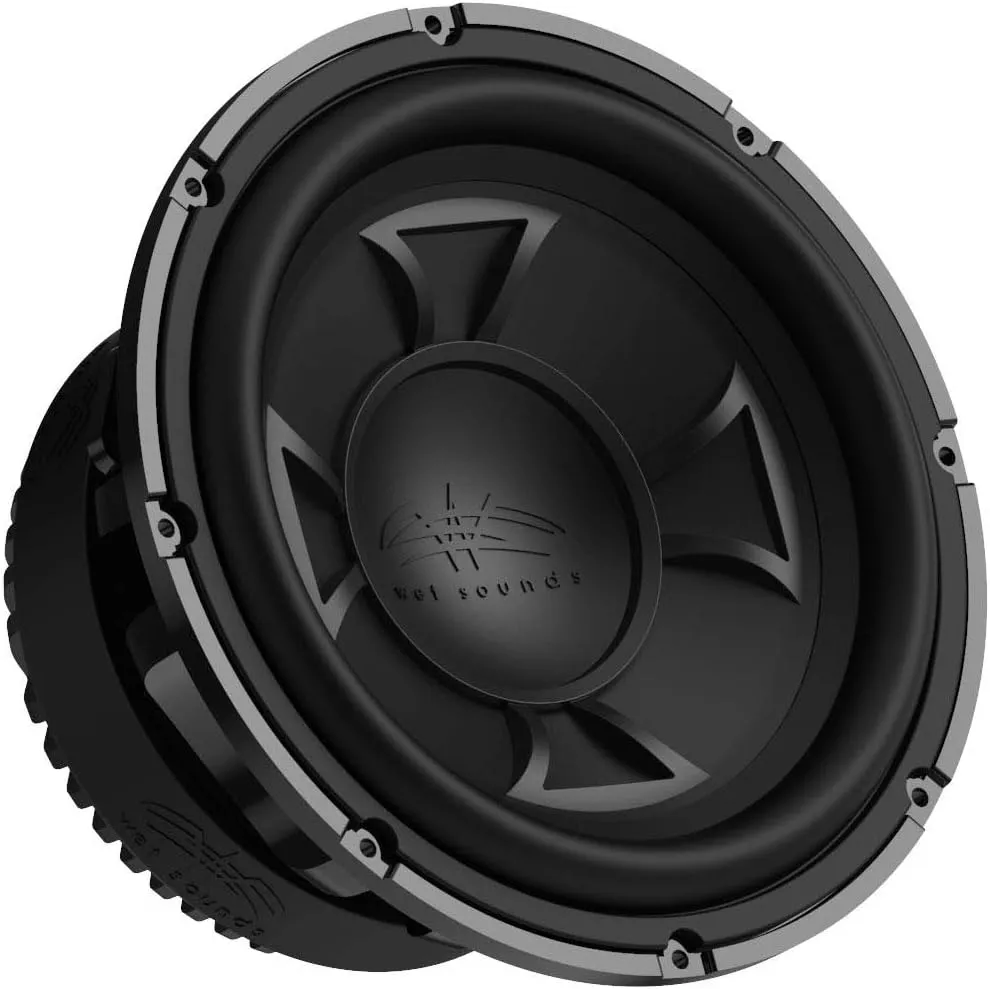

- EXCEPTIONAL PERFORMANCE: The REVO 12 XXX V4-B is a high-performance 12-inch SPL marine subwoofer that delivers exceptional sound quality and power handling.
- ADVANCED TECHNOLOGY: Featuring advanced technologies such as a triple-stack magnet assembly and a proprietary cone design, this subwoofer delivers superior sound reproduction and performance.
- DURABLE DESIGN: Built with a weather-resistant design, this subwoofer is capable of withstanding harsh marine environments, ensuring reliable and long-lasting performance.
- FLEXIBLE INSTALLATION: This subwoofer features a versatile design that allows for flexible installation options, making it easy to integrate into a variety of audio systems.
- STYLISH LOOK: The REVO 12 XXX V4-B features a sleek and stylish design that adds a touch of elegance and sophistication to any boat or marine audio system.
The REVO12-XXX is the one of the only SPL marine woofer in the world.
Advanced acoustical engineering and high end components make the REVO12-XXX the subwoofer of choice for those looking for extreme bass.
Cutting edge computer aided design and full finite element analysis give you a woofer built for extreme use.
Weighing in at over 30 pounds! With the REVO12-XXX, not only do you get killer bass but also some additional ballast! Powder Coated gloss black cast aluminum frame, high stiffness matte black polypropylene/carbon fiber/glass fiber cone, heavy duty magnetic system, high roll thermoformed rubber surround, fiberglass former, 4" dual voice coil, gold plated screw down binding posts, integrated multi part cooling system with t-yoke heat sink and combination peripheral/pole piece venting ensures high power and low voice coil temperatures.
Specifications -
Impedance: Dual 2 ohms
Resistance: 1.0 Ohm
Sd: 510.7 cm2
Xmax: 11 mm
Mms: 242 g
Voice Coil Size: 4.0 inches
Fs - 40 Hz
Vas - 24 Liters
Qms - 5.00
Qes - 0.42
Qts - 0.39
Bl (T*m) - 11.9
Le (mH) - 0.5
SPL - 89 dB
RMS Power - 1200W
Peak Power - 2400W
Size & Weight
Box Specifications: Optimized for 1.2 cu ft sealed enclosure or 1.8 cu ft ported enclosure.
(Optimum: Tuned at 41 Hz)
Weight: 33.4 lbs (15.14kg)
Diameter: 12.4 inches (314.96mm)
Mounting Depth: 6.53 inches (165.86mm)
Hole Cut Out: 11.26 inches (286.00mm)
